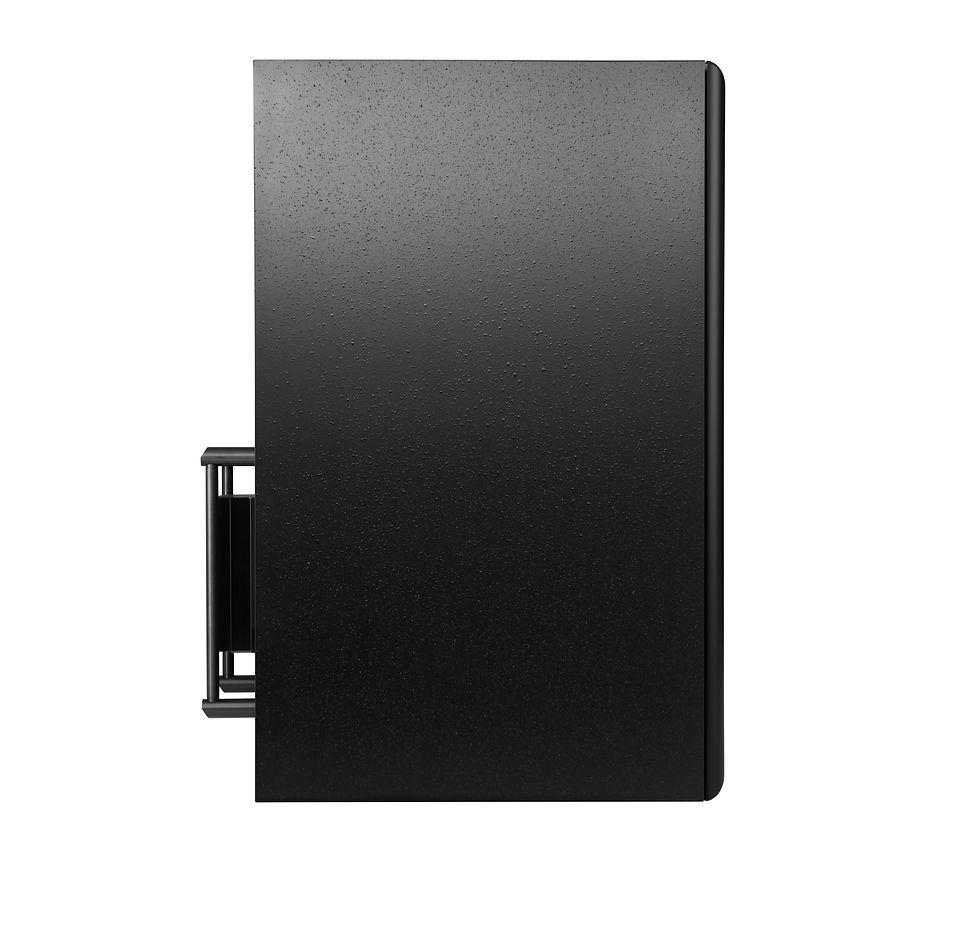

SCM150A Pro
Overview
- ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
- Full “SL” spec 15˝/375mm bass driver.
- ATC 75mm “Super Dome” mid driver.
- On board ATC grounded source 350W Tri-Amp Pack.
- LF contour control.
- Clip indication.
- 6 year warranty.
‘Special Order Item’
Technical Specification
Drivers: HF 1″/25mm, Mid 3″/75mm, LF 15″/375mm
Amplitude Linearity (±2dB): 60Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 25Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 117dB
Crossover Frequencies: 380Hz, 3.5kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction (amplifiers)
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)Physical Dimensions
Dimensions (HxWxD): 884 x 498 x 568mm (34.8˝ x 19.6˝ x 22.4˝) Depth with amplifier at rear adds 3˝
Weight: 75kg / 165lbsCentre Models
Centre models are for use in surround systems and are supplied as single units. The drivers are vertically aligned and not offset as in the standard models.
In-Wall Monitors
In-Wall / Soffit Mount models have full-face square edge baffles & recessed connector panel in rear. These units require remote amp hardware, NL8 speaker cables & 5-pin XLR LED cables - sold seperately. Cable lengths must be specified – Max. 10m recommended.
